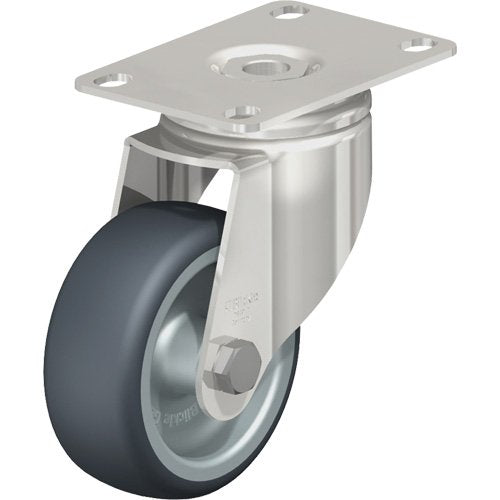

MO626-Caster

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High operational comfort and low-noise operation
• Operating temperature: -4° F to +140° F

Specifications

• Wheel Diameter: 3-1/8" (79.5 mm)
• Capacity: 220 lbs. (100 kg.)
• Wheel Material: Thermoplastic Rubber-Elastomer
• Caster Type: Swivel
• Frame Material: Stainless Steel
• Tread Width: 1-1/4" (31.75 mm)
• Bolt Hole Spacing: 1-3/4" x 2-13/16" (44 mm x 71 mm) - 1-3/4" x 3-1/16" (44 mm 78 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)

Additional Specifications

• Tread & Tire Hardness: 85° Shore A
• Bearing Type: Plain Bore
• Total Height: 4-3/8"
