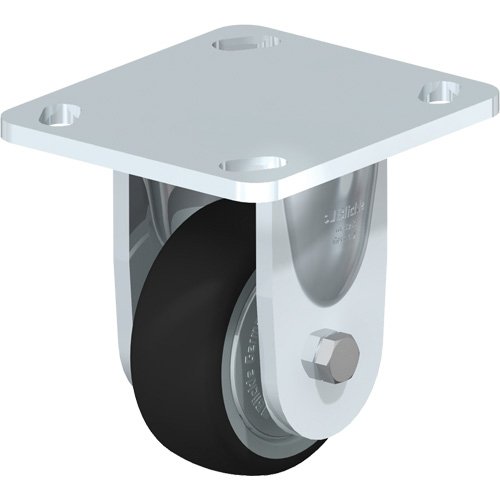

MO579-High-Quality Caster

• Pressed steel rigid caster
• Low-noise operation, rolling and swivel resistance
• Non-marking, non-staining surface
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +160° F

Specifications

• Wheel Diameter: 3-1/8" (79.5 mm)
• Capacity: 330 lbs. (150 kg.)
• Wheel Material: Thermoplastic Polyurethane
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 1-1/4" (31.75 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Tread & Tire Hardness: 94° Shore A
• Bearing Type: Ball Bearing
• Total Height: 4-3/8"
