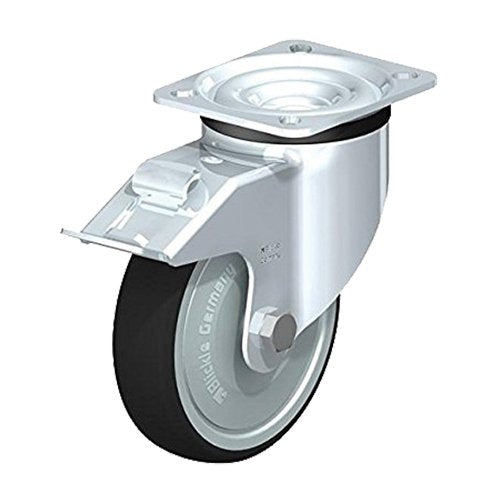

MO575-High-Quality Caster

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Low-noise operation, rolling and swivel resistance
• Non-marking, non-staining surface
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +160° F

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 440 lbs. (199.58 kg.)
• Wheel Material: Thermoplastic Polyurethane
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-1/4" (31.75 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Tread & Tire Hardness: 94° Shore A
• Bearing Type: Ball Bearing
• Total Height: 5-1/8"
