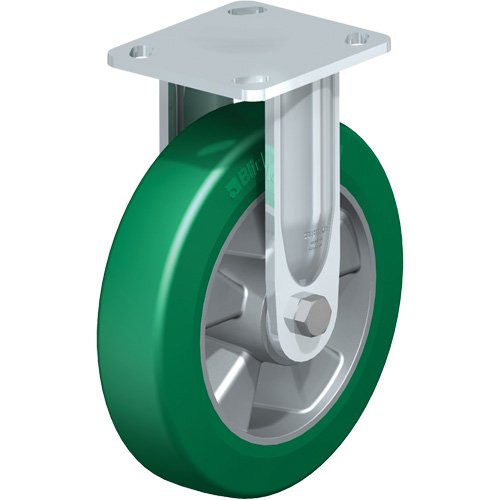

MO568-High-Quality Caster

• Pressed steel rigid caster
• High operational comfort due to extremely thick, elastic tread
• Low-noise operation and rolling resistance
• High abrasion resistance, cut and tear propagation resistance
• Operating temperature: -15° F to +160° F

Specifications

• Wheel Diameter: 8" (203.2 mm)
• Capacity: 660 lbs. (300 kg.)
• Wheel Material: Polyurethane Elastomer
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Tread & Tire Hardness: 75° Shore A
• Bearing Type: Ball Bearing
• Total Height: 9-1/4"
