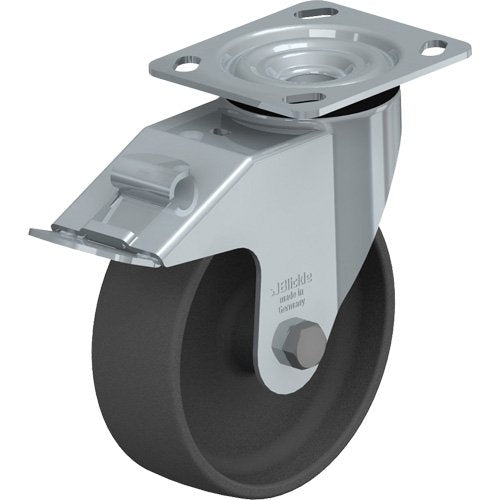

MO554-Impact-Resistant Caster

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F

Specifications

• Wheel Diameter: 6" (152.4 mm)
• Capacity: 660 lbs. (300 kg.)
• Wheel Material: Nylon
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Tread & Tire Hardness: 70° Shore D
• Bearing Type: Plain Bore
• Total Height: 7-1/2"
