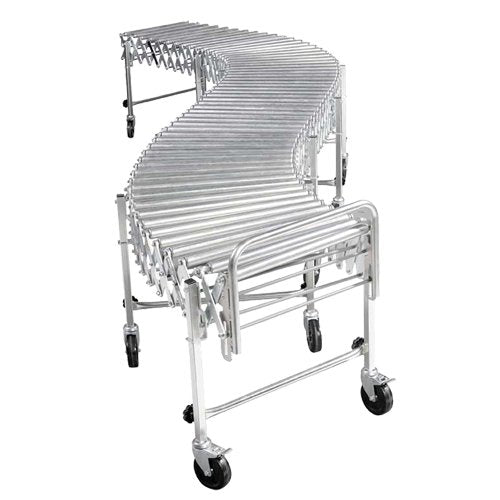

MO442-Nestaflex® Gravity 200 Expandable/Flexible Conveyors

• These portable, extendable flexible conveyors enable you to move loads around bends or in a straight line
• Conveyors set up quickly and fold up into compact units for efficient storage when not in use
• Roller Conveyors are ideal for handling odd shaped boxes, bags and cartons that could get hung up on skate wheel conveyors
• Adjustable height from 28" to 44"
• 5" anti-static swivel rubber casters with brakes included
• Side link frames are 7-ga. steel with a zinc-plated finish
• Galvanized steel rollers are 1-3/8" in diameter with one roller per axle
• 5/16" diameter tie rods and axles at leg connections
• Retractable box stop and couplers standard on each conveyor
• Collapsed to extended ratio is 3.3 to 1
• Made in the USA

Specifications

• Width: 30"
• Conveyor Roller Type: Steel Rollers
• Capacity: 200 lbs. per lin. ft.
• Expanded Length: 36' 3"
• Folded Length: 9' 9"

Additional Specifications

• Leg Sets Per Unit: 10
• Shipping Weight: 875 lbs.
• Axle Centre Width: 5-1/4"
