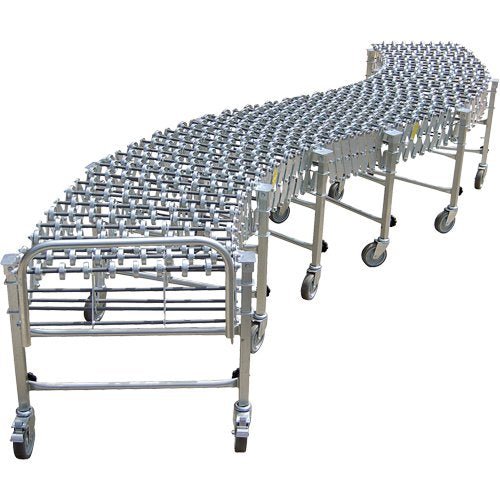

MO419-Nestaflex® Gravity 376AL Expandable/Flexible Conveyors

• These portable, extendable flexible conveyors enable you to move loads around bends or in a straight line
• Conveyors set up quickly and fold up into compact units for efficient storage when not in use
• Skate wheel Conveyors have a 4:1 expansion ratio
• Adjustable height from 28" to 36"
• 5" anti-static swivel rubber casters with brakes included
• 11 gauge structural steel supports
• 2" diameter skate wheels
• Skate wheels are self-tracking for package control around curves and bends
• All units bend around a 21" radius
• Made in the USA

Specifications

• Width: 24"
• Conveyor Roller Type: Steel Skate Wheels
• Capacity: 376 lbs. per lin. ft.
• Expanded Length: 49' 5"
• Folded Length: 14' 4"

Additional Specifications

• Skate Wheels Per Axle: 9
• Leg Sets Per Unit: 14
• Shipping Weight: 960 lbs.
• Axle Centre Width: 5-1/4"
• 5-1/4"
