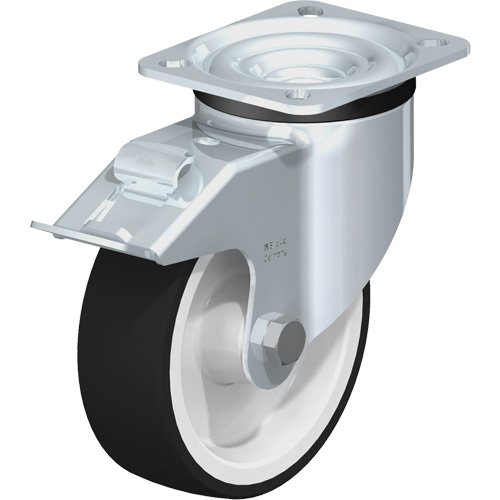

MN934-Caster

• Pressed steel swivel caster, medium heavy duty brackets, with top plate fitting
• Thermoplastic polyurethane tread, with heavy nylon wheel centre
• Bracket made of heavy pressed steel, swivel bracket with double ball bearing in the swivel head, swivel head seals
• Bolted wheel axle
• Zinc-plated, blue-passivated, Cr6-free

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 770 lbs. (349 kg.)
• Wheel Material: Polyurethane
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 1-9/16" (40 mm)
• Bolt Hole Spacing: 3-1/8" x 2-3/8" (80 mm x 60 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 3-15/16" x 3-3/8" (100 mm x 85 mm)

Additional Specifications

• Wheel Colour: Natural White
• Bearing Type: Roller
• Shore Hardness: 94° Shore A
