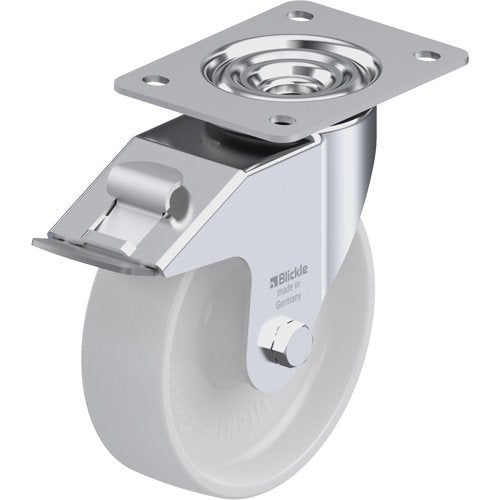

MN901-Caster

• Pressed steel swivel caster with top plate fitting and 'stop-fix' brake
• Bracket made of pressed steel, with double ball bearing in the swivel head and ball protection by the special top plate
• Bolted wheel axle
• Zinc-plated, blue-passivated, Cr6-free

Specifications

• Wheel Diameter: 6-5/16" (160.3375 mm)
• Capacity: 660 lbs. (300 kg.)
• Wheel Material: Nylon
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 4-1/8" x 3" (105 mm x 76 mm)
• Bolt Hole Size: 7/16" (11 mm)
• Plate Size: 5-1/2" x 4-1/3" (140 mm x 110 mm)

Additional Specifications

• Wheel Colour: Natural White
• Bearing Type: Roller
• Shore Hardness: 70° Shore D
