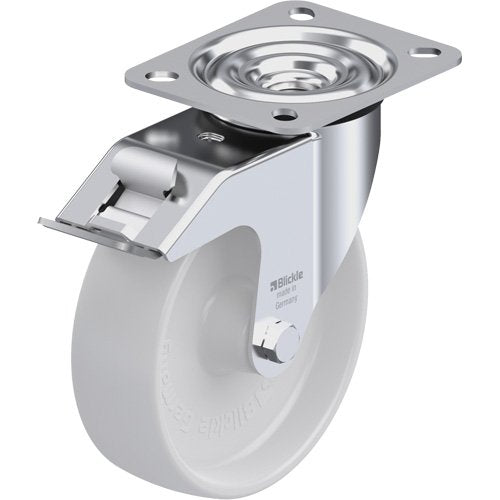

MN899-Caster

• Pressed steel swivel caster with top plate fitting and 'stop-fix' brake
• Bracket made of pressed steel, with double ball bearing in the swivel head and ball protection by the special top plate
• Bolted wheel axle
• Zinc-plated, blue-passivated, Cr6-free

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 330 lbs. (150 kg.)
• Wheel Material: Nylon
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 1-9/16" (40 mm)
• Bolt Hole Spacing: 3-1/8" x 2-3/8" (80 mm x 60 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 3-15/16" x 3-3/8" (100 mm x 85 mm)

Additional Specifications

• Wheel Colour: Natural White
• Bearing Type: Plain Bore
• Shore Hardness: 70° Shore D
