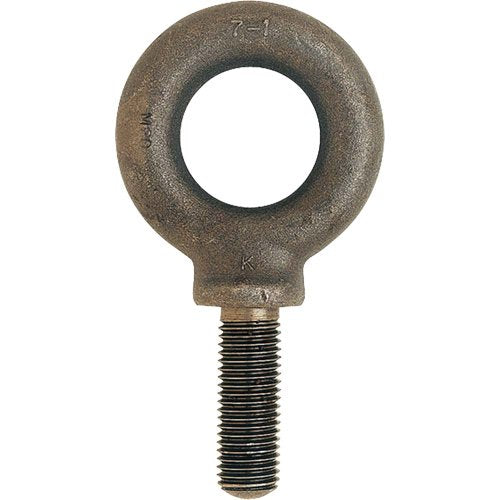

MLP284-SAE Eyebolt

MLP284-SAE Eyebolt

by Gray Tools
SKU: MLP284
$4.22 - $4.22
$4.22
$4.22 - $4.22
$4.22
  • Forged from bar quality fine grain C1030 / C1035 steel bar
  • Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15
  • Rated capacity is for 0° vertical pulls

Specifications

  • Working Load Limit: 1200 lbs. (0.6 tons)
  • Eye Diameter: 7/8"
  • Shank Length: 1-1/8"
  • Body Style: With Shoulder
  • Shank Threading: Fully Threaded

Additional Specifications

  • Thread Size: 5/16"-18
  • Outer Eye Diameter: 1-7/16"
  • Overall Length: 2-13/16"
  • Net Weight: 0.09 lbs.
  • Centre of Eye to Shoulder: 0.09 lbs.
