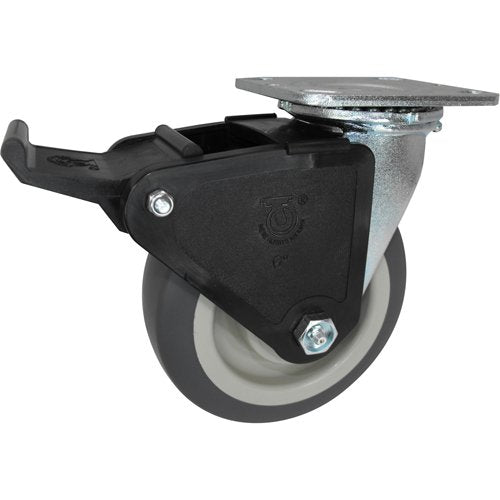

ML776-Total Locking Caster

• Low angle pedal design makes foot access easy for convenient operation
• Simple press of the foot locks both wheel and swivel in any position
• Thermoplastic construction to resist corrosion ; Plate size: 4" x 4 1/2" ; Holes slotted for: 2 5/8" to 3" x 3" to 3 5/8" ; Bolt hole size: 3/8"

Specifications

• Wheel Diameter: 6" (152.4 mm)
• Capacity: 500 lbs. (227 kg.)
• Wheel Material: Rubber
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Ball
• Swivel Radius: 5"
• Overall Height: 7.5"
