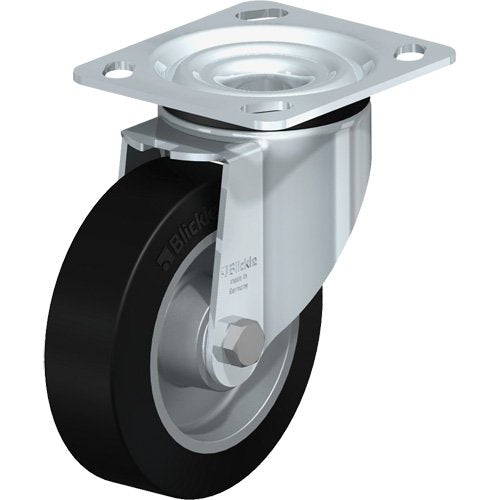

ML664-Heavy-Duty Kingpinless Caster

• 1/2" zerk axle and lock nut
• 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
• Raceway protected from dust and dirt
• Corrosion resistant bright zinc finish
• Brake type: Total locking ; Excellent for:
• Abusive conditions
• Tow lines
• Industrial platform trucks
• Most hardworking industrial functions
• Economical handling of heavy loads where severe abuse is present

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 550 lbs. (249.5 kg.)
• Wheel Material: Rubber
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-9/16" (40 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Roller
• Swivel Radius: 4.25"
• Overall Height: 6.5"
