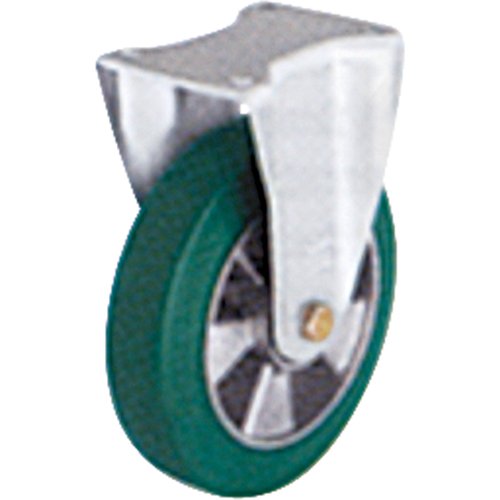

ML027-Softhane® Medium Duty Casters

• Pressed zinc-plated heavy sheet steel frame with double ball bearing reinforced swivel head for low swivel head play and long service life
• Green Softhane« polyurethane wheels are non-marking, cut and tear resistant and provide for low noise operation
• Wheel centres are made of aluminum die-cast for corrosion resistance; Plate size: 4 x 3 3/8; Bolt holes: 3 1/8 x 2 3/8; Bolt hole size: 1/4 x 3/8

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 550 lbs. (249.5 kg.)
• Wheel Material: Polyurethane
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 1-9/16" (40 mm)
• Bolt Hole Spacing: 3-5/32" x 2-3/8" (80 mm x 60 mm)
• Bolt Hole Size: 11/32" (9 mm)
• Plate Size: 4" x 3-3/8" (102 mm x 86 mm)
