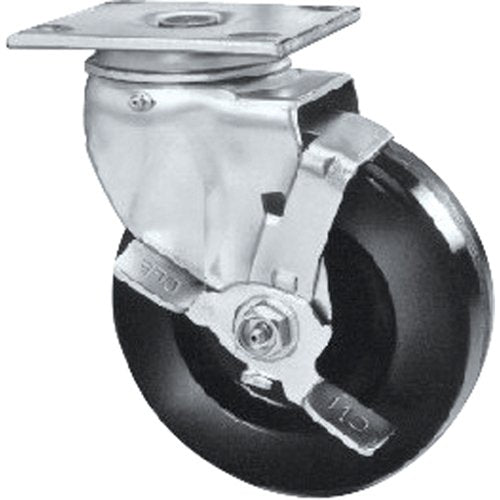

MH570-Heavy-Duty EMaxx Kingpin Caster

• 3/4" diameter heavy-duty kingpin
• 1/2" zerk axle and lock nut
• 5/16" diameter upper and lower ball; hardened steel load bearings
• Virtually maintenance free
• Corrosion resistant bright zinc finish ; Excellent for:
• Stock carts and platform trucks
• Garbage bins
• Hospital equipment
• Food industry
• Heavy service equipment
• Factory use

Specifications

• Wheel Diameter: 8" (203.2 mm)
• Capacity: 900 lbs. (408 kg.)
• Wheel Material: Plastic/Nylon
• Caster Type: Rigid with Brake
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Roller
• Swivel Radius: 6.5"
• Overall Height: 9.5"
• Brake Type: Top Locking
• Top Locking
