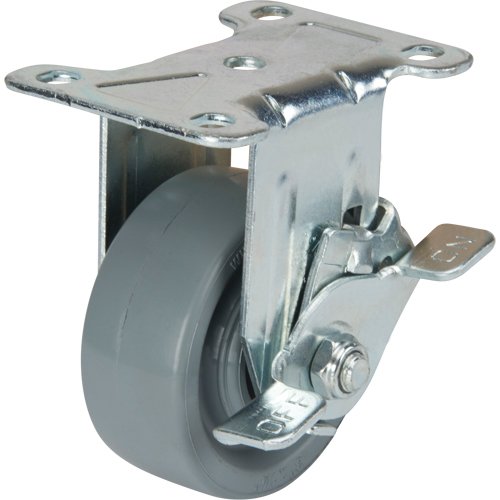

MH462-General Purpose Caster

• 9/16" diameter rivet
• 3/8" diameter axle and lock nut
• 1/4" diameter upper race; 1/4" diameter lower race
• Corrosion resistant bright zinc finish ; Excellent for:
• Medium-duty applications
• Mobile warehousing equipment
• Stock trucks

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 400 lbs. (181 kg.)
• Wheel Material: Phenolic
• Caster Type: Rigid with Side Brake
• Frame Material: Steel
• Tread Width: 1-1/4" (31.75 mm)
• Bolt Hole Spacing: 1-3/4" x 2-7/8" (44 mm x 73 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-3/4" x 3-3/4" (70 mm x 95 mm)

Additional Specifications

• Bearing Type: Steel
• Swivel Radius: 3.5"
• Overall Height: 5"
• Brake Type: Top Locking
• Top Locking
