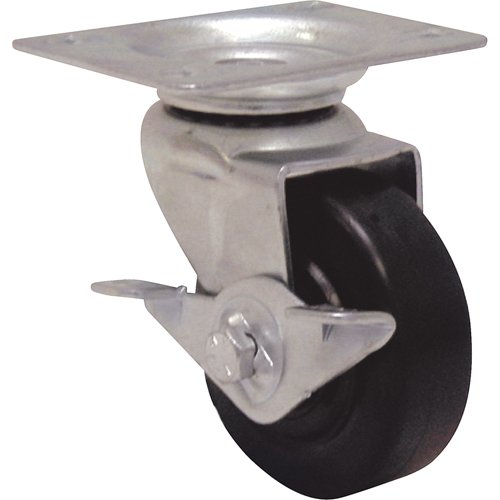

MH362-Light-Duty Caster

• 7/16" rivet
• 5/16" axle and lock nut
• 7/32" diameter upper race; 7/32" diameter lower race; hardened steel load bearings
• Upper and lower diameter race is equal for added performance and strength
• Corrosion resistant bright zinc finish
• Brake type: Side locking ; Excellent for:
• Institutional furniture
• Hospitals
• Food service equipment
• Tool boxes
• Store fixtures
• Audio and visual aid equipment

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 150 lbs. (68 kg.)
• Wheel Material: Rubber
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 1" (25.4 mm)
• Bolt Hole Spacing: 1-3/4" x 3" (44 mm x 76 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-3/4" x 3-3/4" (70 mm x 95 mm)

Additional Specifications

• Bearing Type: Steel
• Swivel Radius: 3.6875"
• Overall Height: 5.8125"
