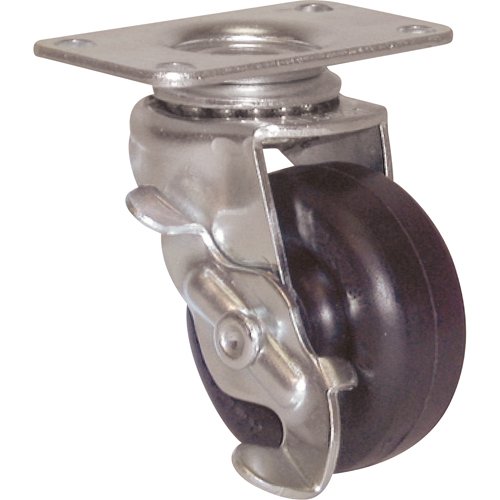

MH314-General Purpose Caster

• 5/16" rivet
• 1/4" riveted axle
• 3/16" diameter single race; hardened steel load bearings
• Corrosion resistant bright zinc finish
• Brake type: Side locking ; Excellent for:
• Office furniture
• Institutional equipment and hospital environment
• 100% non-marking urethane wheels are hard enough for carpeted floors and soft enough for tiled floors

Specifications

• Wheel Diameter: 2" (51 mm)
• Capacity: 80 lbs. (36 kg.)
• Wheel Material: Rubber
• Caster Type: Swivel with Brake
• Frame Material: Steel
• Tread Width: 7/8" (22 mm)
• Bolt Hole Spacing: 1" x 2" (25 mm x 50 mm)
• Bolt Hole Size: 17/64" (6.74 mm)
• Plate Size: 1-1/2" x 1-1/2" (38 mm x 38 mm)

Additional Specifications

• Bearing Type: Steel
• Swivel Radius: 1.75"
• Overall Height: 2.625"
