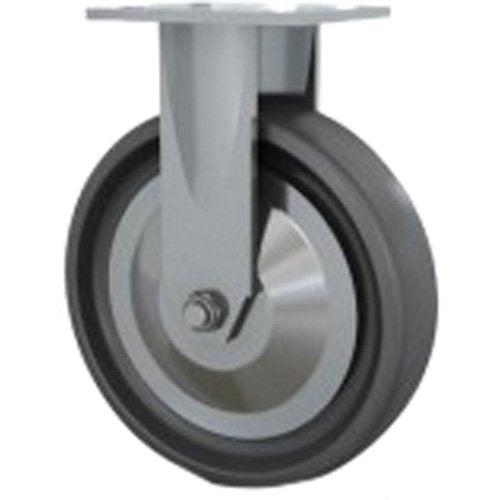

MG418-Heavy-Duty Caster

• 3/4" rivet
• 1/2" axle
• Tread guards standard on wheels
• Bright zinc finish
• Excellent for institutional equipment
• Warehouse use

Specifications

• Wheel Diameter: 8" (203.2 mm)
• Capacity: 1000 lbs. (453.6 kg.)
• Wheel Material: Solid Elastomer
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Precision Ball
• Swivel Radius: 0"
• Overall Height: 9.75"
