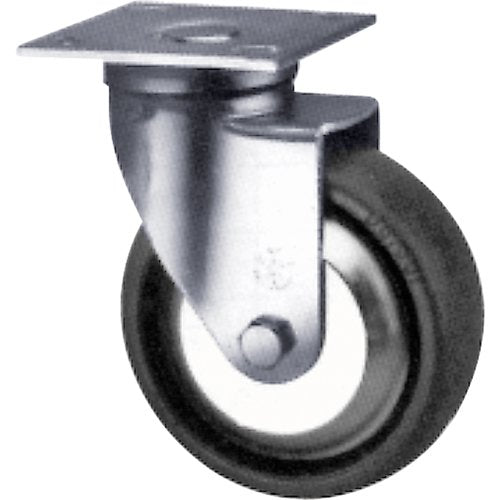

MG397-Heavy-Duty Caster

• 3/4" rivet
• 1/2" axle
• Double row ball bearing swivel/both raceways equal diameter
• Standard with swivel seals and grease fittings in swivel and axle
• All swivel parts case hardened to Rockwell 62C
• Tread guards standard on wheels
• Bright zinc finish ; Excellent for:
• Institutional equipment
• Warehouse use

Specifications

• Wheel Diameter: 8" (203.2 mm)
• Capacity: 600 lbs. (272 kg.)
• Wheel Material: Neoprene
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Precision Ball
• Swivel Radius: 5.75"
• Overall Height: 9.75"
