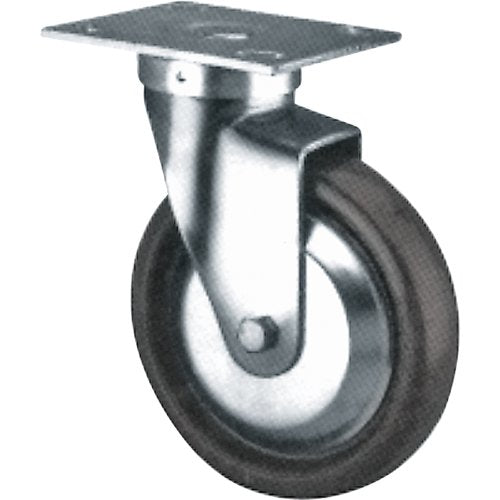

MG306-Medium/Heavy-Duty Caster

• 9/16" rivet
• 3/8" axle
• Thread guards standard on wheels
• Double row ball bearing swivel; both raceways equal diameter
• All swivel parts case hardened to Rockwell 62C
• Bright zinc finish
• Brake available on 4", 5" and 6" diameter wheels ; Excellent for:
• Material handling carts
• Institutional equipment

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 600 lbs. (272 kg.)
• Wheel Material: Solid Elastomer
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 1-3/8" (35 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Precision Ball
• Swivel Radius: 3.5"
• Overall Height: 5.5625"
