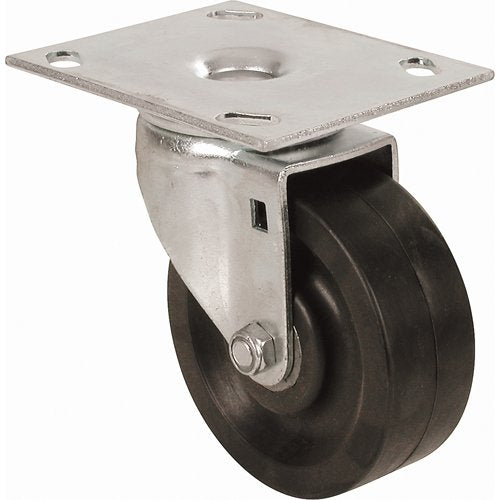

MG264-Heavy-Duty Caster

• 9/16" diameter rivet
• 3/8" drilled axle and lock nut
• Corrosion resistant bright zinc finish
• Available with brake
• 1/4" diameter upper raceway
• 1/4" diameter lower raceway (equal diameter raceway) ; Excellent for:
• Platform trucks
• Food service equipment
• Hotel equipment
• Factory use
• Textile carts

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 350 lbs. (158.8 kg.)
• Wheel Material: Mold-on Rubber
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 1-1/2" (38 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Bearing Type: Roller
• Swivel Radius: 3.3125"
• Overall Height: 5-1/8"
