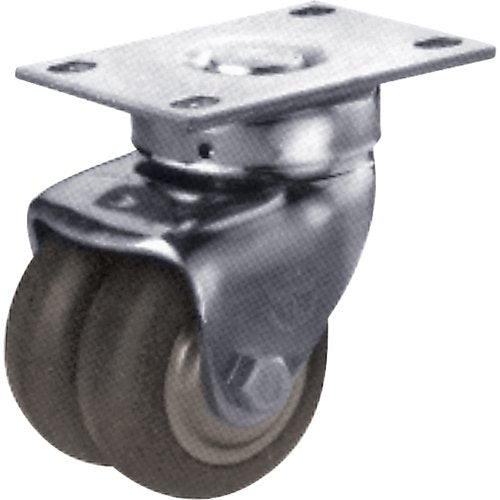

MG257-General Purpose Caster

• 1/2" rivet
• 5/6" axle
• Double row ball bearing swivel; both raceways equal diameter
• All swivel parts case hardened to Rockwell 62C
• Thread guards standard on 2 1/2" wheels
• Bright chrome finish; Excellent for:
• Computer carts
• Airplane carts
• Safes/cabinets; Plate size: 2 1/2" x 3 5/8"; Holes slotted for: 1 3/4" x 2 3/4" to 3"; Bolt hole size: 5/16";

Specifications

• Wheel Diameter: 2-1/2" (63.5 mm)
• Capacity: 300 lbs. (136 kg.)
• Wheel Material: Neoprene
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1" (25.4 mm)
• Bolt Hole Spacing: 2-3/4" x 1-3/4" (70 mm x 44 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)
