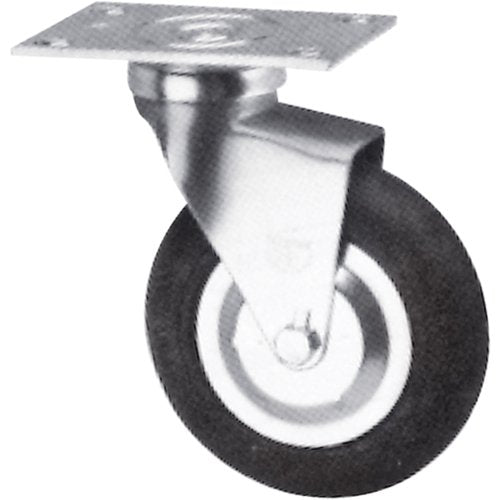

MG051-Caster

• 5/16" axle
• 7/16" rivet
• Double row ball bearing swivel/both raceways equal diameter
• All swivel parts case hardened to Rockwell 62C
• Thread guards standard on sizes larger than 2"
• Bright zinc finish
• Brake available on 3" and 4" dia. wheelsExcellent for:
• Material handling carts and dollies
• Institutional equipment ; ; Swivel top plate; Plate size: 2 1/2" x 3 5/8" ; Holes slotted for: 1 3/4" x 2 3/4" to 3"; Bolt hole size: 5/16"; ; Rigid top plate; Plate size: 2 3/4" x 4"; Holes slotted for: 1 3/4" x 2 7/8" to 3"; Bolt hole size: 5/16"

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 125 lbs. (57 kg.)
• Wheel Material: Neoprene
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1" (25.4 mm)
• Bolt Hole Spacing: 2-3/4" x 1-3/4" (70 mm x 44 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)
