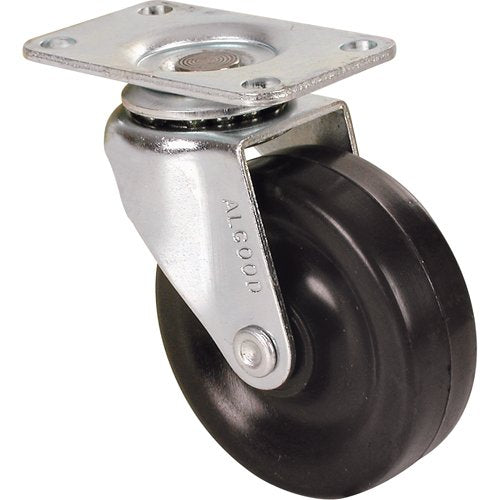

MG044-General Purpose Caster

• 5/16" rivet
• 1/4" riveted axle
• 3/16" diameter single race; hardened steel load bearings
• Corrosion resistant bright zinc finish
• Brake type: Side locking ; Excellent for:
• Office furniture
• Institutional equipment and hospital environment
• 100% non-marking urethane wheels are hard enough for carpeted floors and soft enough for tiled floors

Specifications

• Wheel Diameter: 3" (76 mm)
• Capacity: 90 lbs. (40.8 kg.)
• Wheel Material: Urethane
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 7/8" (22 mm)
• Bolt Hole Spacing: 1" x 2" (25 mm x 50 mm)
• Bolt Hole Size: 17/64" (6.74 mm)
• Plate Size: 1-1/2" x 1-1/2" (38 mm x 38 mm)

Additional Specifications

• Bearing Type: Nylon
• Swivel Radius: 2.3125"
• Overall Height: 3.6875"
