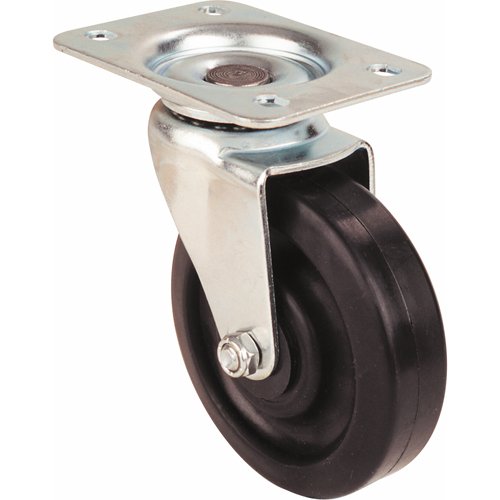

MC330-Caster

• 7/16" diameter rivet
• 5/16" axle and lock nut
• 7/32" diameter upper race; 7/32" diameter lower race; hardened steel load bearings
• Upper and lower diameter race is equal for added performance and strength
• Corrosion resistant bright zinc finish
• Brake type: Side locking ; Excellent for:
• Hospital supply industry
• Textile industry
• Dollies
• Food service equipment
• Store fixtures

Specifications

• Wheel Diameter: 4" (101.6 mm)
• Capacity: 250 lbs. (113 kg.)
• Wheel Material: Phenolic
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-1/4" (31.75 mm)
• Bolt Hole Spacing: 1-3/4" x 3" (44 mm x 76 mm)
• Bolt Hole Size: 5/16" (7.93 mm)
• Plate Size: 2-3/4" x 3-3/4" (70 mm x 95 mm)

Additional Specifications

• Bearing Type: Steel
• Swivel Radius: 3.125"
• Overall Height: 5.125"
