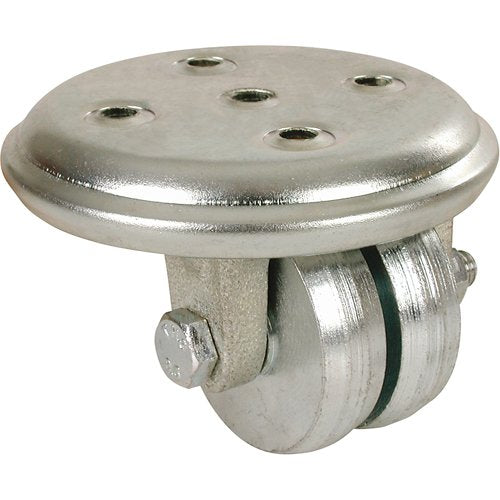

MC014-Low Level Casters

• Designed for special applications where a caster is required for moving heavy equipment over level surfaces
• Only 2 7/16" in overall height with twin 2" diameter wheels
• Can carry up to 600 lbs./caster on a smooth hard floor ; Excellent for:
• Filing cabinets/safes
• Other heavy equipment ; Plate size: 3 3/4" diameter ; Bolt holes: 2" ; Bolt hole size: 1/4"

Specifications

• Wheel Diameter: 2" (51 mm)
• Capacity: 600 lbs. (272 kg.)
• Wheel Material: Cast Iron
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 3/16" (4.8 mm)
• Bolt Hole Spacing: 3" x 1-3/4" (76 mm x 44 mm)
• Bolt Hole Size: 1/4" (6.35 mm)
• Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)

Additional Specifications

• Bearing Type: Plain
• Swivel Radius: 2"
• Overall Height: 2.4375"
