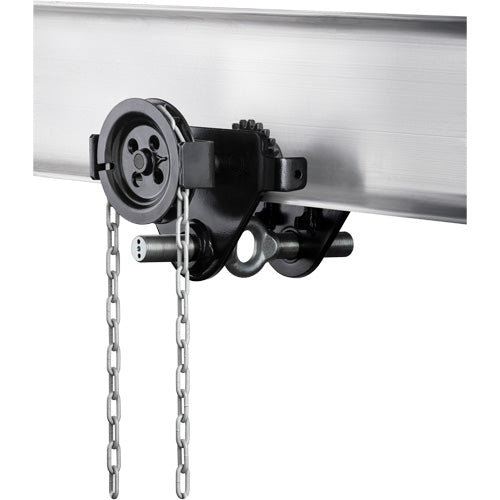

LW530-HTG Geared Clevis Trolley

LW530-HTG Geared Clevis Trolley

by Columbus Mckinnon
SKU: LW530
$1,074.33 - $1,074.33
$1,074.33
$1,074.33 - $1,074.33
$1,074.33
  • CM HTP and HTG Clevis Trolleys can easily be installed in seconds for exactpositioning or seamless traversing of loads with manual or powered hoists
  • These universal trolleys are compatible with nearly any Columbus McKinnon hoist brand or model
  • Adjust the flange width in a matter of seconds by turning the trolley axle, eliminating the need for loose parts, including spacer washers, when installing the trolley
  • Adjustments are made by rotating the clevis load bar, ensuring the centered positioning of the hoist in the clevis to prevent creeping to the left or right
  • Trolley wheels are pre-lubricated with encapsulated ball bearings for smooth rolling
  • Available for all capacities, spark-resistant trolleys are equipped with bronze wheels, rubber bumpers as standard equipment, and stainless steel hand chain on geared trolleys

Specifications

  • Capacity: 4409 lbs. (2 tons)
  • I-Beam Flange Width: 2-39/64" - 8-43/64"

Additional Specifications

  • Flange Thickness: 0.99"
  • Min. Radius: 45.28"
  • Weight: 40 lbs.
