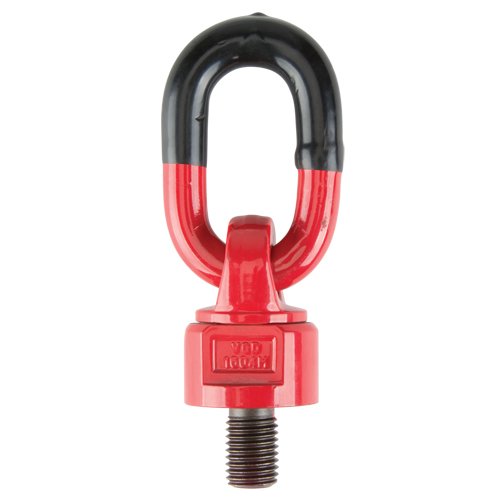

LU827-Lifting Swivel Hoist Rings

• Designed for angular lifting
• Hoist rings resist stresses that would bend or break an eyebolt
• Pivots 180° front to back and a base that swivels 360°
• Embossed with VGDM trace code
• Working load limit and nominal size meet ASME B 30.26 standards
• The proof load is 2 x Working load limit and Minimum Breaking Strength is 4 x Working Load Limit
• Made from grade 80 alloy steel
• Packaging is either recyclable, biodegradable, reduced, and/or features recycled content

Specifications

• Thread Size: M24
• Thread Length: 38 mm
• Working Load Limit: 12600 lbs. (6.3 tons)
• Finish: Plastic Coating
• Material: Alloy Steel

Additional Specifications

• Working Load Limit at 90° Angle: 6300 lbs. (3.15 tons)
