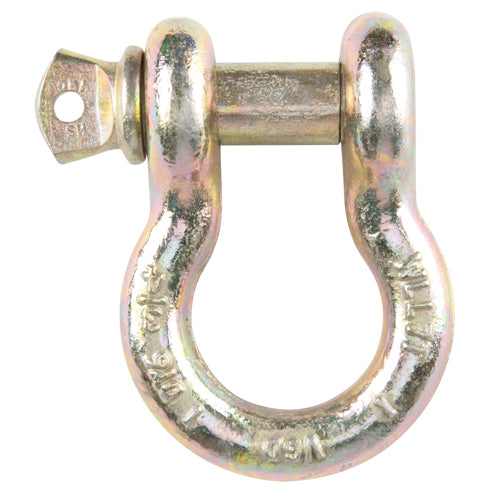

LU733-Screw Pin Anchor Shackle

• Heat treated carbon steel bows, quenched and tempered with Alloy pins
• Metallic coating of shackle pins allows for closer thread tolerances than possible for shackles with an extra layer of paint
• Design factor 6:1
• Meets the performance requirements of U.S. Fed. Spec. RR-C-271D, ASME B30.26, Type 4A, Class 2 Grade B
• Packaging is either recyclable, biodegradable, reduced, and/or features recycled content

Specifications

• Size: 3/4"
• Capacity: 14000 lbs. (7 tons)
• Shackle Type: Screw Pin
• Shackle Bow Finish: Yellow Chromate Plated

Additional Specifications

• Pin Diameter: 7/8"
