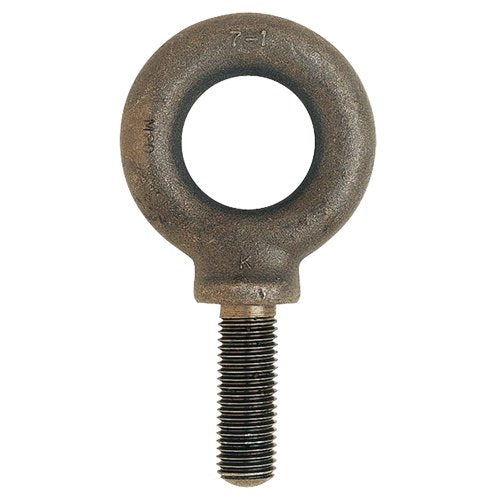

LU727-Eye Bolt

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 814 lbs. (0.407 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 36.5 mm
• Shank Length: 28.5 mm
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 22"
• O.D. Eye: 36.5 mm
• Thread size mm, UNC-2A: M7 x 1"
• Overall Dimensions: 2-3/4" L x 1-1/2" W x 1/2" H
• Weight: 2-3/4" L x 1-1/2" W x 1/2" H
