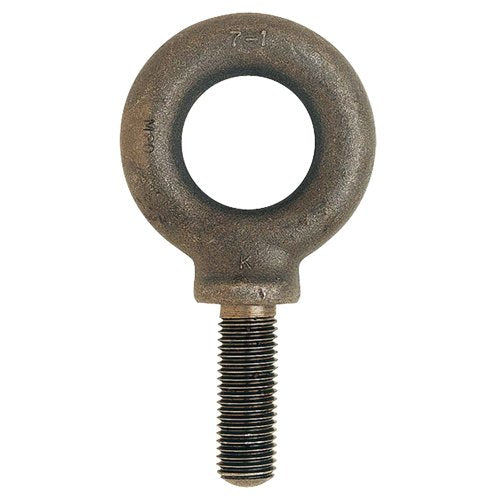

LU720-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 27984 lbs. (13.992 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 152.4 mm
• Shank Length: 3-3/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 73"
• O.D. Eye: 152.4 mm
• Thread size mm, UNC-2A: M45 x 4-1/2"
• Overall Dimensions: 11" L x 6" W x 2-1/2" H
• Weight: 11" L x 6" W x 2-1/2" H
