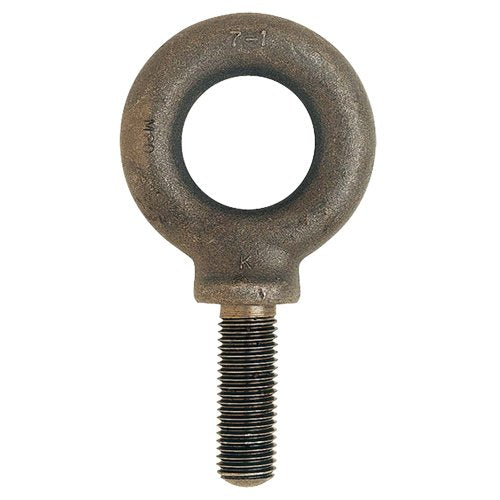

LU717-Eye Bolt

• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 19734 lbs. (9.867 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 131 mm
• Shank Length: 3-1/2"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 63"
• O.D. Eye: 131.8 mm
• Thread size mm, UNC-2A: M36 x 4"
• Overall Dimensions: 9-1/2" L x 5-1/4" W x 2-1/4" H
• Weight: 9-1/2" L x 5-1/4" W x 2-1/4" H
