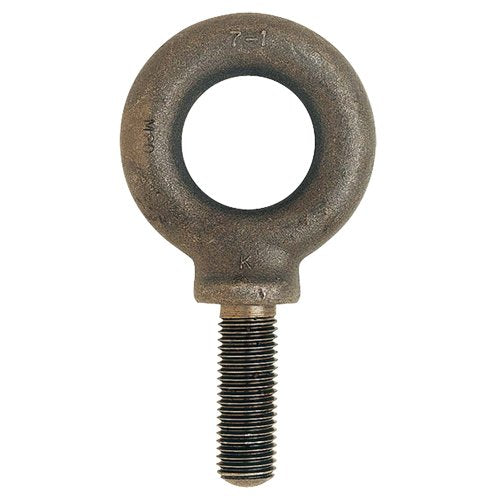

LU710-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 6292 lbs. (6.146 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 81 mm
• Shank Length: 57 mm
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 41"
• O.D. Eye: 81 mm
• Thread size mm, UNC-2A: M20 x 2-1/2"
• Overall Dimensions: 6" L x 3-1/4" W x 1-1/4" H
• Weight: 6" L x 3-1/4" W x 1-1/4" H
