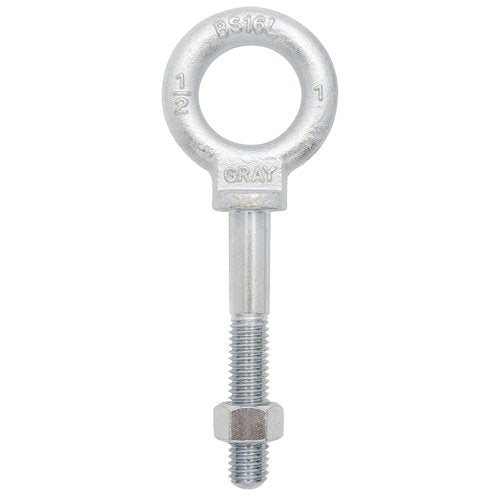

LU709-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 5200 lbs. (2.6 tons)
• Finish: Zinc Plated
• Eye Diameter: 2-9/16"
• Shank Length: 4"
• Body Style: With Shoulder
• Shank Threading: Partially Threaded

Additional Specifications

• I.D. Eye: 1-3/8"
• O.D. Eye: 2-9/16"
• Thread size mm, UNC-2A: 5/8" - 11"
• Overall Dimensions: 7-3/32" L x 2-21/32" W x 1-3/32" H
• Weight: 7-3/32" L x 2-21/32" W x 1-3/32" H
