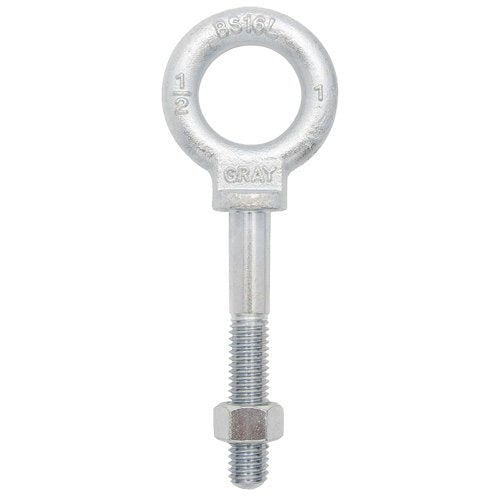

LU705-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 2600 lbs. (1.3 tons)
• Finish: Zinc Plated
• Eye Diameter: 2-1/8"
• Shank Length: 3-1/4"
• Body Style: With Shoulder
• Shank Threading: Partially Threaded

Additional Specifications

• I.D. Eye: 1-3/16"
• O.D. Eye: 2-1/8"
• Thread size, UNC-2A: 1/2" - 13"
• Overall Dimensions: 5-13/16" L x 2-1/4" W x 21/32" H
• Weight: 5-13/16" L x 2-1/4" W x 21/32" H
