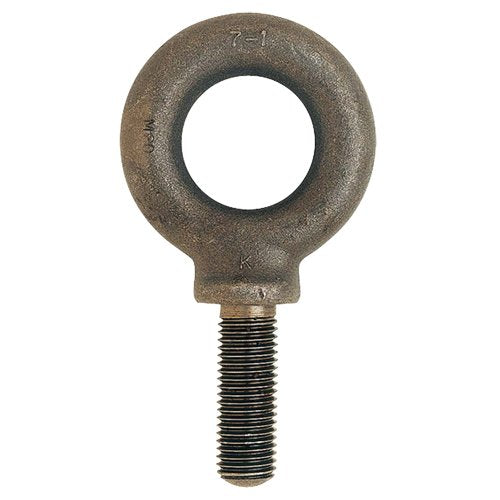

LU704-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 3520 lbs. (1.76 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 65 mm
• Shank Length: 44.5 mm
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 35"
• O.D. Eye: 65 mm
• Thread size mm, UNC-2A: M14 x 2"
• Overall Dimensions: 4-1/2" L x 2-1/4" W x 1" H
• Weight: 4-1/2" L x 2-1/4" W x 1" H
