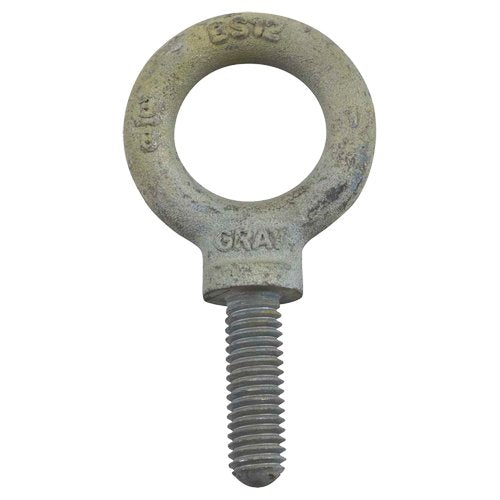

LU703-Eye Bolt

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity

Specifications

• Working Load Limit: 2000 lbs. (1 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 1-13/16"
• Shank Length: 1-3/8"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 1-1/16"
• O.D. Eye: 1-13/16"
• Thread size mm, UNC-2A: 7/16" - 14"
• Overall Dimensions: 3-1/2" L x 2" W x 13/32" H
• Weight: 3-1/2" L x 2" W x 13/32" H
