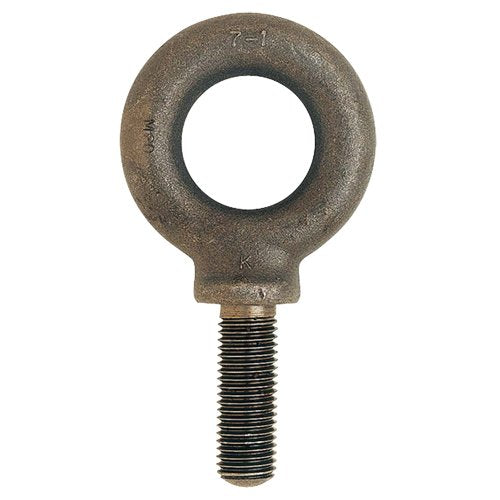

LU701-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 2266 lbs. (1.133 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 54 mm
• Shank Length: 38 mm
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 30"
• O.D. Eye: 54 mm
• Thread size mm, UNC-2A: M12 x 1-3/4"
• Overall Dimensions: 4" L x 2" W x 1" H
• Weight: 4" L x 2" W x 1" H
