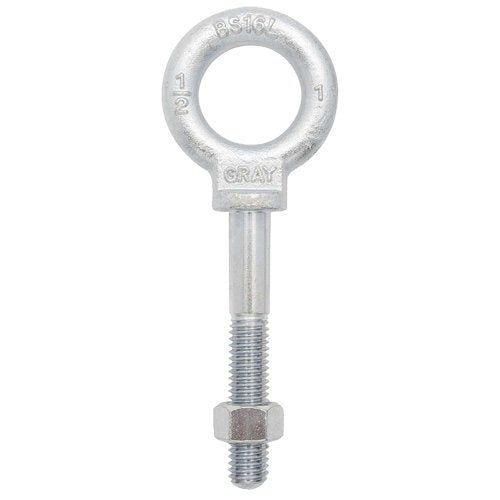

LU700-Eye Bolt
by Gray Tools
Original price
$7.33
-
Original price
$7.33
Original price
$7.33
$7.33
-
$7.33
Current price
$7.33
- Never apply loads greater than rated capacity
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
Specifications
- Working Load Limit: 1550 lbs. (0.775 tons)
- Finish: Zinc Plated
- Eye Diameter: 1-11/16"
- Shank Length: 2-1/2"
- Body Style: With Shoulder
- Shank Threading: Partially Threaded
Additional Specifications
- I.D. Eye: 1"
- O.D. Eye: 1-11/16"
- Thread size mm, UNC-2A: 3/8" - 16"
- Overall Dimensions: 4-1/2" L x 1-11/16" W x 11/16" H
- Weight: 4-1/2" L x 1-11/16" W x 11/16" H
