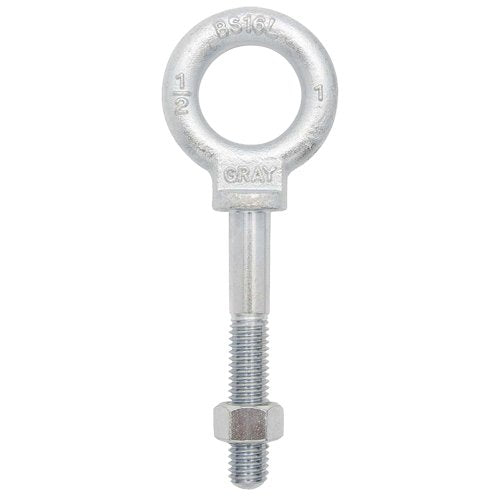

LU698-Eye Bolt

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity

Specifications

• Working Load Limit: 1200 lbs. (0.6 tons)
• Finish: Zinc Plated
• Eye Diameter: 1-7/16"
• Shank Length: 2-1/4"
• Body Style: With Shoulder
• Shank Threading: Partially Threaded

Additional Specifications

• I.D. Eye: 7/8"
• O.D. Eye: 1-7/16"
• Thread size mm, UNC-2A: 5/16" - 18"
• Overall Dimensions: 4" L x 1-1/2" W x 21/32" H
• Weight: 4" L x 1-1/2" W x 21/32" H
