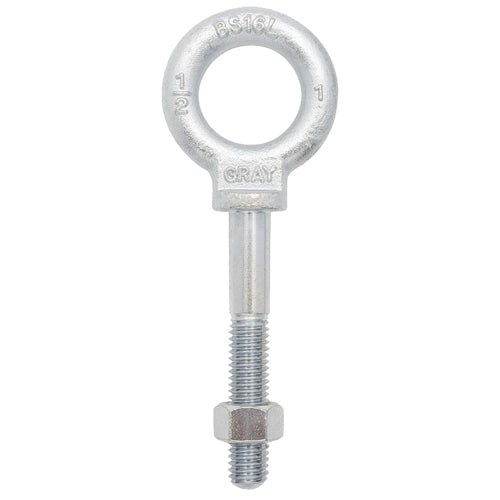

LU696-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 650 lbs. (0.325 tons)
• Finish: Zinc Plated
• Eye Diameter: 1-3/16"
• Shank Length: 2"
• Body Style: With Shoulder
• Shank Threading: Partially Threaded

Additional Specifications

• I.D. Eye: 3/4"
• O.D. Eye: 1-3/16"
• Thread size, UNC-2A: 1/4" - 20"
• Overall Dimensions: 3-13/32" L x 1-1/4" W x 1/2" H
• Weight: 3-13/32" L x 1-1/4" W x 1/2" H
