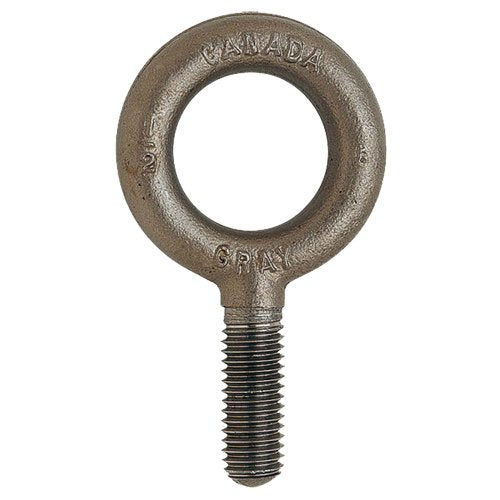

LU694-Eye Bolt

LU694-Eye Bolt

by Gray Tools
SKU: LU694
$159.90 - $159.90
$159.90
$159.90 - $159.90
$159.90
  • Never apply loads greater than rated capacity
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

  • Working Load Limit: 32000 lbs. (16 tons)
  • Finish: Uncoated Natural Finish
  • Eye Diameter: 6"
  • Shank Length: 3 3/4"
  • Body Style: Without Shoulder
  • Shank Threading: Fully Threaded

Additional Specifications

  • I.D. Eye: 2-7/8"
  • O.D. Eye: 6"
  • Thread size, UNC-2A: 1-3/4" - 5"
  • Overall Dimensions: 9-13/16" L x 6" W x 1-19/32" H
  • Weight: 9-13/16" L x 6" W x 1-19/32" H
