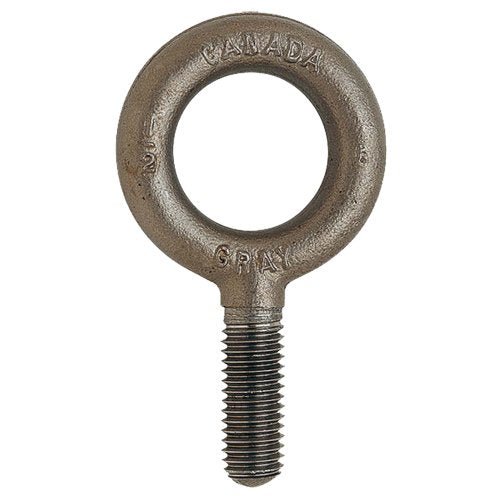

LU693-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 24000 lbs. (12 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 5-3/16"
• Shank Length: 3 1/2"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 2-1/2"
• O.D. Eye: 5-3/16"
• Thread size, UNC-2A: 1-1/2" to 6"
• Overall Dimensions: 8-3/4" L x 5-1/4" W x 1-1/2" H
• Weight: 8-3/4" L x 5-1/4" W x 1-1/2" H
