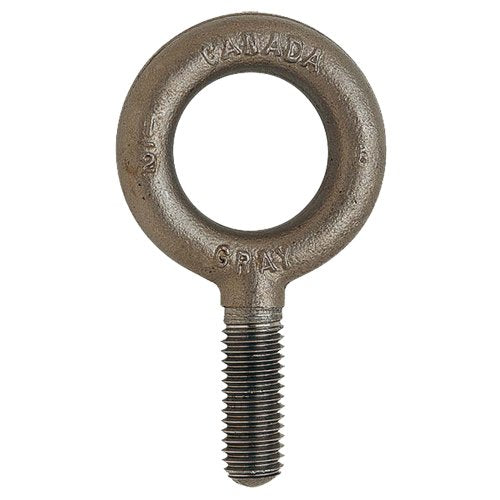

LU692-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 21000 lbs. (10.5 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 4-7/16"
• Shank Length: 3"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 2-3/16"
• O.D. Eye: 4-7/16"
• Thread size, UNC-2A: 1-1/4" - 7"
• Overall Dimensions: 7-1/2" L x 4-1/2" W x 1-1/4" H
• Weight: 7-1/2" L x 4-1/2" W x 1-1/4" H
