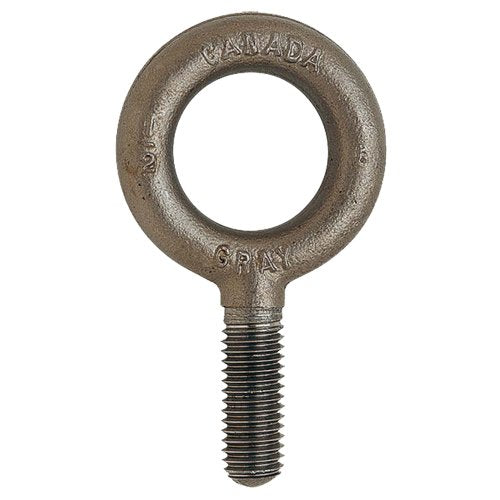

LU691-Eye Bolt
by Gray Tools
Original price
$42.04
-
Original price
$42.04
Original price
$42.04
$42.04
-
$42.04
Current price
$42.04
- Never apply loads greater than rated capacity
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
Specifications
- Working Load Limit: 17000 lbs. (8.5 tons)
- Finish: Uncoated Natural Finish
- Eye Diameter: 4-1/16"
- Shank Length: 2-3/4"
- Body Style: Without Shoulder
- Shank Threading: Fully Threaded
Additional Specifications
- I.D. Eye: 2"
- O.D. Eye: 4-1/16"
- Thread size, UNC-2A: 1-1/8" - 7"
- Overall Dimensions: 7" L x 4" W x 1" H
- Weight: 7" L x 4" W x 1" H
