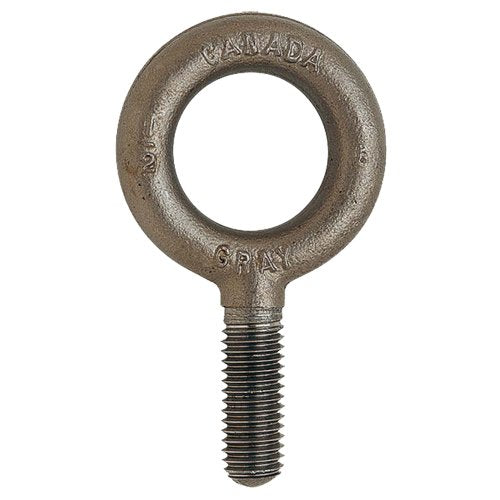

LU690-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 13300 lbs. (6.65 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 3-9/16"
• Shank Length: 2-1/2"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 1-13/16"
• O.D. Eye: 3-9/16"
• Thread size mm, UNC-2A: 1"
• Overall Dimensions: 6-3/32" L x 3-1/2" W x 1" H
• Weight: 6-3/32" L x 3-1/2" W x 1" H
