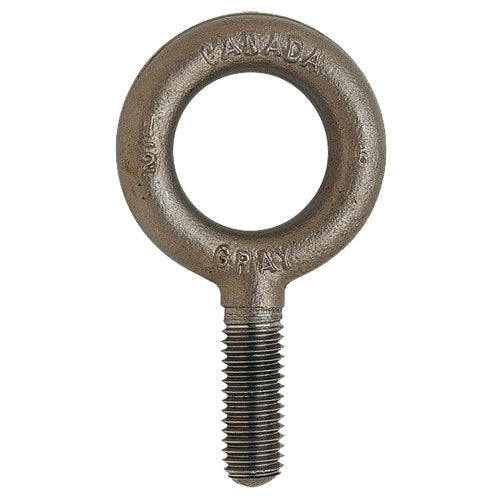

LU688-Eye Bolt

• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Never apply loads greater than rated capacity

Specifications

• Working Load Limit: 7200 lbs. (3.6 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 2-13/16"
• Shank Length: 2"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 1-1/2"
• O.D. Eye: 2-13/16"
• Thread size mm, UNC-2A: 3/4" - 10"
• Overall Dimensions: 4-3/4" L x 2-13/16" W x 3/4" H
• Weight: 4-3/4" L x 2-13/16" W x 3/4" H
