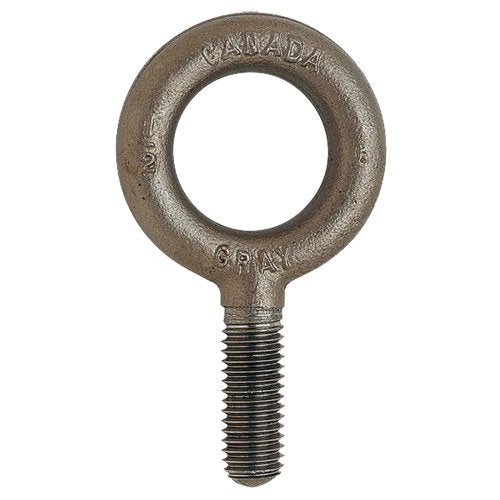

LU687-Eye Bolt
by Gray Tools
Original price
$10.89
-
Original price
$10.89
Original price
$10.89
$10.89
-
$10.89
Current price
$10.89
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Never apply loads greater than rated capacity
Specifications
- Working Load Limit: 5200 lbs. (2.6 tons)
- Finish: Uncoated Natural Finish
- Eye Diameter: 2.5625"
- Shank Length: 1-3/4"
- Body Style: Without Shoulder
- Shank Threading: Fully Threaded
Additional Specifications
- I.D. Eye: 1-3/8"
- O.D. Eye: 2-9/16"
- Thread size mm, UNC-2A: 5/8" - 11"
- Overall Dimensions: 4-1/4" L x 2-1/2" W x 19/32" H
- Weight: 4-1/4" L x 2-1/2" W x 19/32" H
