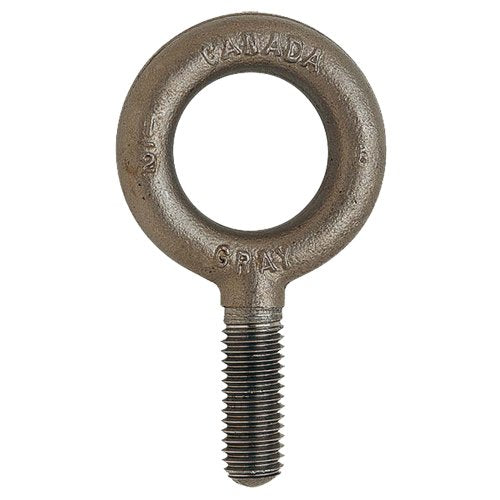

LU686-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 3200 lbs. (1.6 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 2.3125"
• Shank Length: 1-5/8"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 1-1/4"
• O.D. Eye: 2-5/16"
• Thread size mm, UNC-2A: 9/16" - 12"
• Overall Dimensions: 4" L x 2-1/4" W x 1/2" H
• Weight: 4" L x 2-1/4" W x 1/2" H
